X-Ray

Since version 3.2

The X-Ray feature enhances your stores functionality by providing an edit button alongside each content. Content creators can directly access the source for editing, thereby improving content management efficiency.

How to activate X-Ray

To activate the X-Ray feature, click on the Magic Button and select the X-Ray option.

http://localhost:4000

When enabled, content composing the page are outlined with a user interface allowing the contributor to know the source of it and providing a quick access to the corresponding administration interface.

X-Ray on custom types

By default, the X-Ray feature is available for the main GraphQL types provided by Front-Commerce (Product, Categories, …). It is also possible to implement X-Ray for custom types and/or for existing types that are extended with data coming from another source.

Add the @storefrontContent directive in the schema referencing a metadata extractor

First, when defining a custom type, you have to use the @storefrontContent directive to instruct the X-Ray feature that an object of that custom type comes from an external service and can be edited. The directive will dynamically add an internal resolver to track usage of any field of the type. Your schema.gql would look like:

src/my-module/schema.gql

type MyCustomType @storefrontContent(extractorIdentifier: "identifier") {
  ID id!
  String name!
}

The extractorIdentifier identifies a content metadata extractor that must be registered in the application. This is typically done in the contextEnhancer of the GraphQL module:

./my-extension/extractors/custom-type-extractor.js

import {
  ContentMetadata,
  ContentMetadataExtractor,
} from "@front-commerce/core/graphql/contribution-mode";

export default class MyCustomTypeExtractor extends ContentMetadataExtractor {
  getIdentifier() {
    return "identifier"; // the same value as in schema.gql
  }

  async extract(resolvedData, source, args, context) {
    return new ContentMetadata(
      source.id,
      "MyCustomType",
      // it can be any string identifying a source, we use `magento` or
      // `contentful` for instance. It is used to customize the color and the icon
      // of the X-Ray user interface.
      "aCustomSource",
      `https://a-remote-service.example.com/edit/${source.id}`
    );
  }
}

Register the extractor in the ContentMetadataExtractorRegistry

To integrate your custom extractor into the system, you must register it with the ContentMetadataExtractorRegistry service. This process involves using lifeCycle hooks available in Front-Commerce extension definition.

./my-extension/index.ts

// Import your custom extractor
import MyCustomTypeExtractor from "./extractors/custom-type-extractor";

export default defineExtension({
  name: "my-extension",
  // Additional extension configuration can go here

  // Setup lifecycle hooks
  unstable_lifecycleHooks: {
    // Hook for server initialization
    onServerServicesInit: async (services, request, config) => {
      // Example of configuring your extractor with dynamic parameters from configProviders
      const adminUrl = `${config.someConfig.endpoint}/${config.someConfig.adminPath}`;

      // Register your custom extractors
      services.ContentMetadataExtractorRegistry.register([
        new MyCustomTypeExtractor(adminUrl),
      ]);
    },
  },
});

Add <StorefrontContent /> in your React components

After that, you can enrich React components responsible for displaying a MyCustomType object by using <StorefrontContent />, that way when X-Ray is enabled, the user interface can be enriched:

src/web/theme/modules/MyCustomType/MyCustomType.js

import React from "react";
import StorefrontContent from "theme/modules/StorefrontContent";

const MyCustomType = ({ aMyCustomType }) => {
  return (
    <StorefrontContent type="MyCustomType" id={aMyCustomType.id}>
      <h1>{aMyCustomType.name}</h1>
    </StorefrontContent>
  );
};

By default, the X-Ray view will be scoped as block. You can make it global to the whole page by defining the scope="page" prop.

<StorefrontContent type="MyCustomPage" id={aMyCustomPage.slug} scope="page">

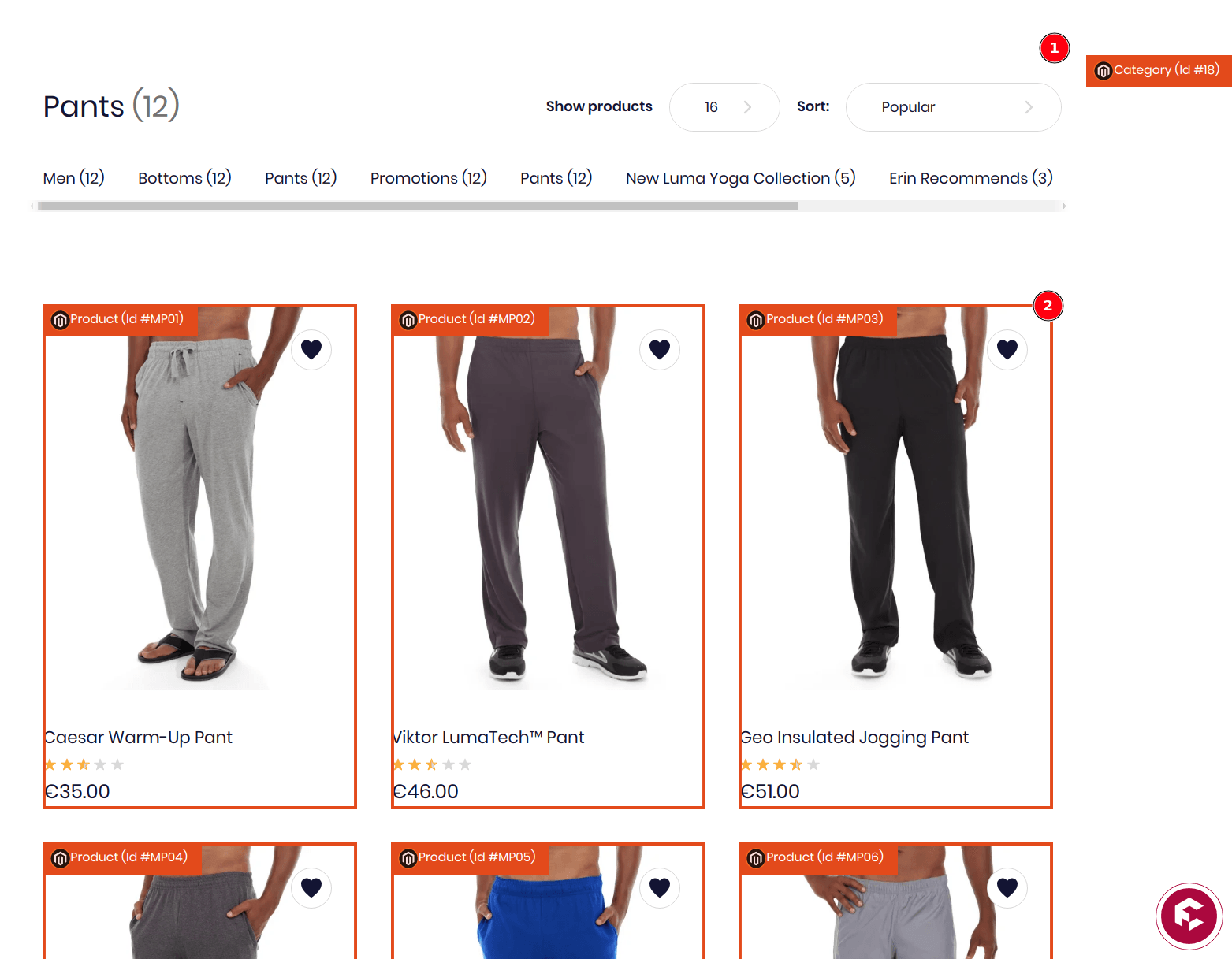

The screenshot below illustrates a page scope for the category (1) and block scopes for product items (2):

Style a custom source

If your content comes from a specific source, you can configure a dedicated color and icon for that source. For that, you can can override app-sources:

theme/modules/StorefrontContent/app-sources.js

const anSvgIcon = /* … */

const customStyle = {
  name: "aCustomSource",
  color: "rgb(147, 74, 97)",
  icon: anSvgIcon,
}

export default [customStyle];
